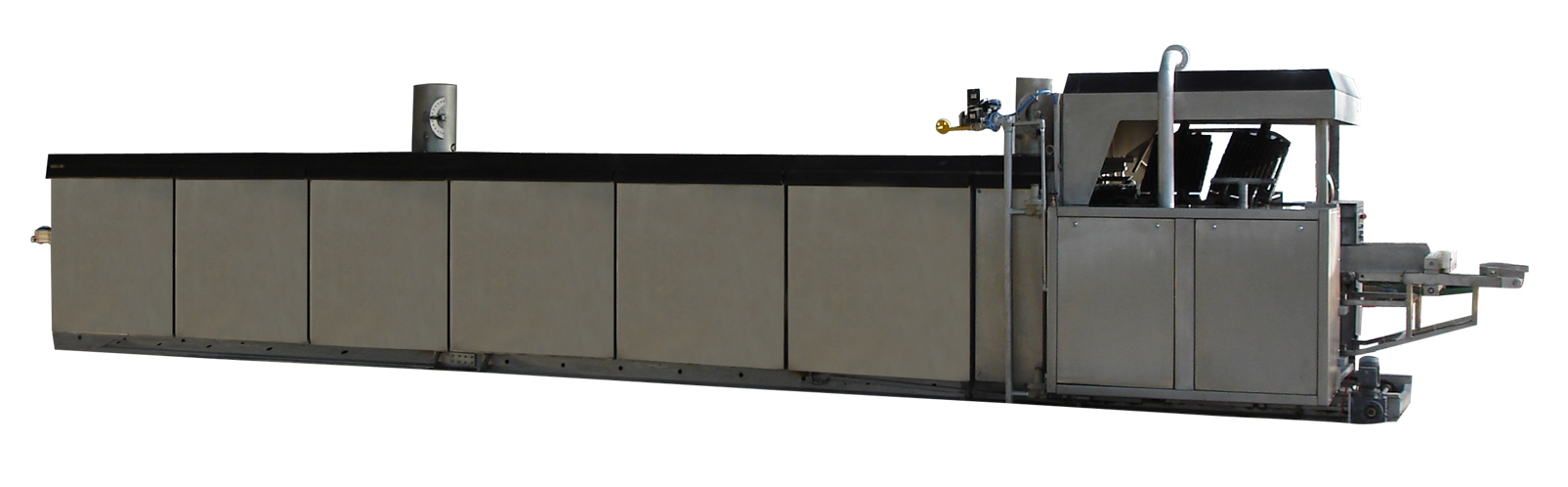

Wafer Machine : WA Series Baking Plants


PLATE SIZE :350 x 470 mm

The WA Series of Wafer Biscuit Baking Machine are designed for fully automatic production of wafer sheets with fine medium or deep-reeding, as well as wafer sheets with hollow forms for all types of shapes. According to the output required it may be equipped with 48, 60 and 72 baking plates. The standard plate size is 470 X 350. These baking machines can be heated by L.P.G. (or if preferred by Electricity). Universal triangular burners are used for baking effect in gas plant by using twin row method. This brochure details gas heated plants.

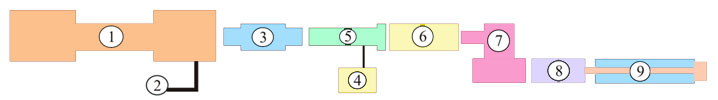

TYPICAL WAFER PLANT LAYOUT

1. Wafer Oven                 4. Planetary Cream Mixer.         7. Wafer Cutting Process.
2. Batter Mixer.               5. Cream Spreading Process.     8. Wafer Fanning Device.
3. Sheet removal & stress reliever.      6. Book Cooler.       9. Packing Process.


FEATURES : FRAMELESS DESIGN / LOW FUEL CONSUMPTION

The machine features a sturdy and torsion resistant steel frame work. Non-corrosive protection is afforded to the heat losses, and heat transfers between inner and outer casings are reduced to be absolute minimum. The tong chain evolved is extremely strong and almost maintenance free.

OPERATION :

When the batter gets deposited, the upper and lower baking plates are pressed together and locked. The high closing pressure is absorbed by large size closing rollers located above and below the tongs. Locking is effected by means of hook, and bearing clearance which has no effect on the closing mechanism or on the thickness of the wafer sheet. Batter depositing system ensures uniform sheet weights and waste free and optimum batter usage.

Batter Deposit

Sheet Cooling



Sheet Removal


HEATING:


Burner

High Efficiency triangular burners can be adjusted for an extremely even application of heat over the entire surface of the baking plates.

INSULATION:


Hinged Doors

Fully opened hinged doors along the entire length on both the sides of the baking machine permit total access to the interior for ease of cleaning and maintenance.

CONTROL PANEL:



Control cabinet containing all units for the Automatic Baking Machine and incorporate the following functions: Safety switches with over load and over voltage relays, fault-current circuit breaker. Optional temperature measurement by sensor can be provided.

TECHNICAL DATA:

Size of the Baking Plates 470 x 350 mm
Type    WA 48 WA 60 WA 72
Output of wafer sheets/hour(Back Cyled=2m) 1440 1800 2160
Cream filler Wafers/hour 200-225 Kgs 250-275 Kgs 300-325 Kgs
Gas Heating:
L.P.Gas consumption Kgs/hr (approx)
Electric load in Kw

30-35
9kw

38-42
9kw

44-48
9kw
Dimensions in mm.
Length
Width
Height
Weight in Kg. (approx.)

10,000
1350
2450
9000

12,000
1350
2450
11250

14,000
1350
2450
13500
Shipping space in cubic metres (approx.) 32 40 46














* Modifications Reserved
