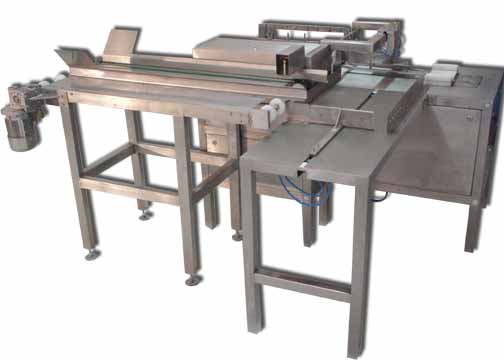

This machine is attached with a pneumatic
pusher & stacker, with counter. The wafer books coming from the Book Cooler are fed to the cutting machine through intermediate conveyor where in first the pneumatic pusher allows the wafer book to feed them at first cut and simultaneously a gentle press is applied for a gentle press required for the stack wafer books at the process of cutting.
Technical
Data :
Machine Variables
WC4
Size of plate (in
mm)(apprx.)
470 X
350
Stack height (in mm)
70
Minimum cutting
width (in mm)
16
Cutting wire (spring
steel) (in mm)
0.5
Connected Load (in
kw)
1.5
For pneumatic pusher air
supply as required up to 6-7 kg/cm2
