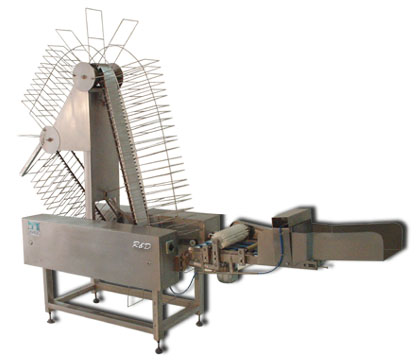

Sheet Cooler Series - (SC):-

  • Gentle delivery of the wafer sheets via a guide to the conveyor belt.
  • Rotating soft brushes for removing the “baking pearls”.
  • Waste container for the baking pearls.
  • Efficient cooling and stress-relieving in the ambient air due to a constant dwell period of the sheets in the machine

Technical Data :

Different Sizes of wafer sheet in mm SC0-230X290         SC1-270X370               SC2-290X460                SC3-350X470
Capacity /minute directly depending on the capacity of the Automatic baking Machine
Effective number of bows for the wafer sheets 35-40 (apprx)
Time for cooling and stress relieving Variable
Connected load  0.5 Kw
Voltage 415 V, Pe +/- 10%
Frequency 50 Hz, +/- 2%
Dimensions
Length 2700mm
Width (changes with the sheet size) 820-1020mm
Height up to the upper edge of the wafer sheet 1900mm
Shipping Volume 5.5 CBM
Net Weight 210 Kg
