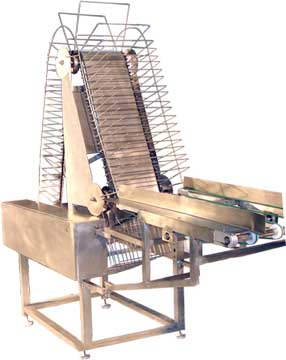

Sheet Cooler  SC4- Series :-

  • Specially designed for WA Plants, with Conveyor attached.
  • Gentle delivery of the wafer sheets via a guide to the conveyor belt.
  • Rotating soft brushes for removing the “baking pearls”.
  • Efficient cooling and stress-relieving in the ambient air due to a constant dwell period of the sheets in the machine.
  • Gentle delivery of the wafers onto the following creaming machine

Technical Data :

Different Sizes of wafer sheet in mm SC4-350x470
Capacity/minute directly depending on the capacity of the Automatic baking machine
Effective number of bows for the wafer sheets 75 (apprx)
Time for cooling and stress relieving Variable
Connected load  0.5 Kw
Voltage 415 V, Pe +/- 10%
Frequency 50 Hz, +/- 2%
Dimensions
Length 2400mm
Width (changes with the sheet sizes 1020mm
Height up to the upper edge of the wafer sheet 2250mm
Shipping Volume 5.5 CBM
Net Weight 300 kg
