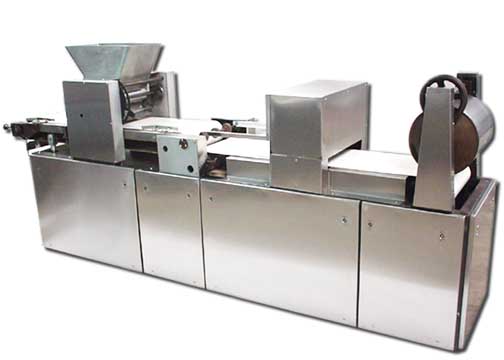

Wafer Creaming Machine - (CR5) :-

This machine spreads creams automatically on wafer sheets and subsequently forms them into wafer blocks.
The CR5 is a high-efficiency machine. 300 books can be spread and put together to make wafer blocks, of up to five sheets; in one hour. The desired quantity of the cream layers can be adjusted by means of a counting device. A stacking device puts the spread sheets together to make a wafer block.
The machine has a spreading unit which operates using a contact system (3).
The spreading rollers are heated by electricity and the heating is accurately adjustable. The number of revolutions made by the spreading rollers as well as the speed of conveyor belt are infinitely variable independent of each other.


Technical Data :

Dimensions of wafer sheets 290 x 460 mm
Width of the spreading roller 285 mm
Wafer Sheet Per Minute 18(Max)
Electrical load 2.5 Kw
Size  of the machine (Approximate dimensions of Machine)
Length
Width
Height


2900mm
650mm
1400mm
Weights(Approximate)
Net
with export packing

650 kilos
900 kilos
Shipping space 3 cub. meters

Plant Layout Animation
Download Brochure  Pdf File 82Kb
Video

Media File (WMV)
612Kb
